Advantage of Ball Mill Grinding
advantage of ball mill grinding
Ball Mill Grinding Introduction:
The ball mill is the key equipment for the material to be broken, and then crushed. The ball mill is widely used in the industrial production of fine grinding machinery, there are many types, Possession of the ball mill, cement mill, ultrafine laminated mill, hand mill, horizontal mill, Ball mill, energy-saving ball mill, overflow ball mill, ceramic ball mill, grid ball mill Applicable mill for grinding all kinds of ores and other materials, widely used in mineral processing, building materials and chemical industry can be divided into dry and wet Two grinding According to different ways of discharge can be divided into two kinds of grid type and overflow. Cylinder shape can be divided into the ball mill Duantong barreled ball mill, tube mill and conical mill four kinds.
Working Principle:
The ball mill is a horizontal cylinder, and out of the material hollow shaft and the grinding head parts, cylinder length of the cylinder, cylinder equipped with a grinding body, the cylinder is of steel manufacturing, steel liner and cylinder fixed, the grinding media general for the steel ball, according to different diameter and a certain percentage into the tube, the grinding media can also be used to the steel segment.
Be selected according to the granularity of the abrasive material, the material from the ball mill feed end of the hollow shaft to mount the cylinder body, when the rotation of the Ball Mill, grinding media due to the role of inertia and centrifugal force, friction, making it the posts near the cylinder liner cylinder away and was taken to a certain height, when, being thrown by its own gravity, the whereabouts of the grinding body as a projectile, like the cylinder body of material to crushing.
By material from the feed device into the compound by the air shaft spiral evenly into the mill's first warehouse, the warehouse there are ladder liner or corrugated liner, built with different specifications steel ball, rotating cylinder produces a centrifugal force to the ball a certain height After the fall pounding and abrasive materials. The material in the first position, the coarse grinding, the single-layer diaphragm plate into the second position, the warehouse lined with flat lining, steel ball, the material further grinding. Powder through the discharge grate plate to complete the grinding operation.
Cylinder in the rotation process, the grinding media have slipped, abrasive to the material in the slip process, in order to make effective use of abrasive, to teach the general 26-mesh pulverized when the particle size, the mill body cylinder Sec separated by a diaphragm plate, namely, the dual positions, and materials into the first position when the ball crushed, the material into the second position when the steel end grinding of materials, Ground qualified materials from the discharge end of the hollow discharge axis, pulverized when the feed particles of material 2, such as sand and slag, coarse fly ash, mill shell, not to set up partitions, a single-chamber tube mill grinding volume of the steel segment .
Advantage of Ball Mill Grinding:
Ball mill is an efficient tool for grinding many materials into fine powder. The Ball Mill is used to grind many kinds of mine and other materials, or to select the mine.2 It is widely used in building material, chemical industry, etc. There are two ways of grinding: the dry way and the wet way. It can be divided into tabular type and flowing type according to different expelling mine.
To use the Ball Mill, the material to be ground is loaded into the Neoprene barrel that contains grinding media. As the barrel rotates, the material is crushed between the individual pieces of grinding media that mix and crush the product into fine powder over a period of several hours.
Quite simply, the longer the Ball Mill runs, the finer the powder will be. Ultimate particle size depends entirely on how hard the material you're grinding is, and the time how long the Ball Mill runs. Our Ball Mills have been used to grind glass, powder food products, creat custom varnishes, make ceramic glaze, powder various chemicals, and make Black Powder.

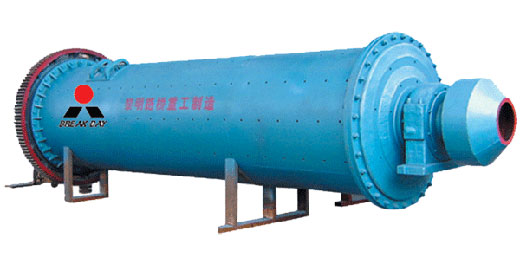

Liming Ball Mill Grinding:
Liming Heavy Industry, production and delivery of the ball mill grinding is an excellent machine of The Grinder. Liming Heavy Industry is committed to producing the best mechanical milling equipment capable of producing various types of ball mill grinding and crushing machines. If you need to ball mill grinding or similar products, please contact us, we will provide quality service so that you get a satisfactory harvest.
