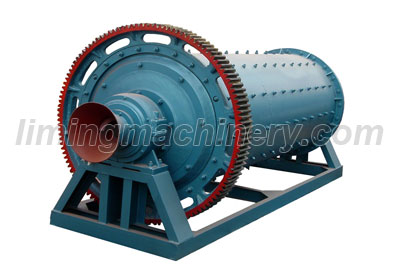

Ball Milling Machine
ball milling machine
Ball Milling Machine Introduction:
In the crusher process, ball milling machine is widely used in manufacturing industries such as cement, silicate, new building materials, refractory materials, fertilizer, ferrous metal, nonferrous metals, glass, ceramics. grinding equipment can be used for a variety of ores and other dry and wet grinding of materials.
The machine changes the intrinsic grinding machine structure. Body and ground plank are an indivisible whole. Repair, it can reduce a plane only once. Layered spherical support host bearing dual roller bearings can reduce energy costs by 30 percent. The intrinsic mode of the grille mandatory evacuation, rather than by controlling a dropped pattern. This can improve the milled particles and processing capacity reduced by 15-20%.
Ball Milling Machine Structure:
The ball milling machine is composed of feeding part, the discharging part, turning part, transmission part (reducer, small driving gear, motor, electronic control), the main part of. The hollow shaft using steel, lined with removable rotary gear casting hobbing process, the body inlaid cylinder liner wear, has good wear resistance. The operation of the machine is stable, reliable work.
Ball Milling Machine Works:
The Ball milling machine is simplified by the level expected out of the hollow shaft and the grinding head parts, simplified for a long cylinder, cylinder equipped with a grinding media ball, cylinder steel plate, a steel liner and Simplified fixed grinding bodies are generally steel ball, according to different diameter and a certain percentage into the tube, grinding media can also be used to the steel segment, which can be selected according to the granularity of the abrasive material, material mill feed end of the hollow shaft load of the cylinder body, when the Ball milling machine Simplified rotation when grinding media due to the role of inertia and centrifugal force, friction, so that it posts on the cylinder liner near the cylinder away, was taken to a certain height, when, due to its own gravity to be left grinding body drop, falling like a projectile, like the cylinder body of material to crushing.
Cylinder in the rotation process, the grinding media have slipped, abrasive to the material in the slip process, in order to make effective use of abrasive, to teach the general 26-mesh pulverized when the particle size, the mill body cylinder Sec separated by a diaphragm plate, namely, the dual positions, and materials into the first position when the ball crushed, the material into the second position when the steel end grinding of materials, Ground qualified materials from the discharge end of the hollow discharge axis, pulverized when the feed particles of material 2, such as sand and slag, coarse fly ash, mill shell, not to set up partitions, a single-chamber tube mill grinding volume of the steel segment .
Liming Heavy Industry as one of China's largest manufacturer of ball milling machine. The company has solid strength and leading edge technology to produce advanced ball milling machine, and provision of all aspects of installation and maintenance services. The dawn of the ball milling machine will ensure that your production run well and efficient conduct. The dawn of quality first, sincere service Liming Heavy Industry commitment to all customers.
