Cone Crusher Animation Show
Introduction:
Cone crusher is widely used in metallurgical industry, building materials, road construction, stone engineering and silicate is applied to the crushing of medium or above hardness of the king of all ore and rock. Characteristics of the machine is high crushing ratio, high efficiency, high processing capacity, low operation cost, easy to adjust and economic operation.
There are several types of cone crusher, such as: CS series cone crusher, hydraulic cone crusher, spring cone crusher and so on.
CS series cone crusher:
CS series cone crusher is to crush high or medium hardness material, such as iron ore, copper ore, limestone, quartz, granite, ect.and usually as a second or third stage crusher for metallurgy, road engineering, stone engineering and design, and so on. Standard and short-head type, depending on the discharge capacity. The series offers the highest crushing efficiency and lowest cost, by the majority of customers and the quality of the final product.
Hydraulic Cone Crusher:
The best combination of single-cylinder hydraulic cone crusher crushing machine adopts frequency and eccentricity, the smash product of a much smaller scale. Therefore, the more crushing less grinding efficiency is more significant, crushing and grinding power consumption is substantially reduced. Crushing, high efficiency, the perfect combination of efficient room than other crusher. More material was pressed at different levels, the size of the final product is a uniform cubic meters. Hydraulic adjustment and clean room, so that the operation and maintenance more convenient and automatic. The trouble is much less of this series of single-cylinder Hydraulic Cone Crusher run rate of more than 85%, so the overall cost is greatly reduced.

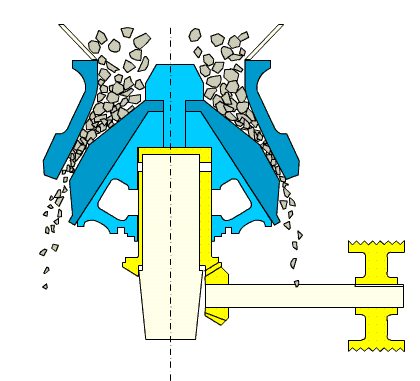

cone crusher animation show
Component Parts:
Cone crusher machine of its main frame structure, the horizontal axis, move the cone, the balance wheel, eccentric sleeve, on the crushing wall (fixed cone), under the broken wall (moving cone), fluid couplings, lubrication systems, hydraulic systems, control systems of several parts.
Cone Crusher Animation of Work:
The cone crusher, the rotation of the motor through a pulley or coupling, cone crusher drive shaft and cone crusher cone Ministry of the eccentric sleeve forced to move around one week fixed point for rotary pendulum movement. So broken cone of broken wall and sometimes close to sometimes leave the solid installed in the adjustment sleeve rolling acetabular wall surface, so that the ore in the crushing cavity is constantly under attack, squeezing and bending of the ore crushing. Motor through a bevel gear drive eccentric sleeve, crushing cone rotary pendulum movement. Crushing cone and sometimes close to sometimes leave the fixed cone, complete fragmentation and nesting. The junction of the support sleeve and the frame body by a spring compression, not broken objects fall into the piece of metal such as the crusher, spring produce compressive deformation, and expel the foreign body, insurance, to prevent damage to the machine. Not broken foreign body through the crushing chamber, or for some reason the machine overload, cone crusher, cone crusher spring safety system to achieve insurance cone crusher port of discharge increases. Foreign body from the cone crusher crushing chamber to discharge such as foreign body stuck in the row of ore can be used to clear chamber system, the row of mine to continue to increase, expelled cone crusher crushing chamber. The cone crusher under the action of the spring, the automatic reset of the port of discharge, cone crusher machine back to normal. The surface of the crushing chamber lined with a wear-resistant manganese steel liner. Pai mine mouth size hydraulic or manual adjustment.
The cone crusher in accordance with the work of processing capacity can be divided into sub-coarse crushing cone crusher, the crushed cone crusher and crushing cone crusher into three categories, according to the different needs of users to buy.
