Cone Crusher Installation
Cone Crusher Overview:
Cone crusher is widely applied in metallurgical, construction, road building, stone and phosphatic industry. Cone crusher is suitable for hard and mid-hard rocks and ores, such as iron ores, copper ores, limestone, quartz, granite, gritstone, etc. Type of the crushing cavity is decided by the application of the ores. Standard type is for PYZ (secondary crush); middle type is for PYD (tertiary crush); short-head type is for primary and secondary crush.
Cone Crusher Features:
1, High productivity; high quality;
2, Less machine stop time;
3, Easy maintenance and low cost;
4, Unique crushing ability in primary, secondary and tertiary crushing.

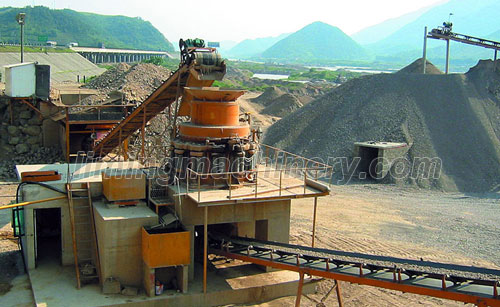

cone crusher installation
Structure & Operation Principles:
The cone crusher consist of frame, transmission device, hollow eccentric shaft, bowl-shaped bearing, crushing cone, springs and hydraulic pressure station for adjusting discharge opening.
During operation, the motor drives the eccentric shaft shell to turn around through ahorizontal axle and a pair of bevel gear. The axle of crushing cone swings with the force of eccentric shaft shell so that the surface of the crushing wall is close to the roll mortar wall from time to time. In this way, the ores and rocks will be pressed and crooked and crushed.
Cone Crusher Installation:
The installation broken cone, we should firmly in the foreground set up a higher point in a wooden rack with a cone crusher installation. Remove Tu in the shaft and spherical surface of the reservoir protection, and with the wind-net lubricants and oil groove. In a cone axis coated yellow oil, the ball thin layer of oil coated surface.
Cone crusher at the time of installation to Add gently eccentric shaft in the air, secure in his place so that the spherical bearings Bowl and Bowl to avoid contact with tile damage spherical ring, as shown in Figure 9 by the installation.
Test of Cone Crusher:
In the above parts of the installation to be done after the air load test to check the installation is in compliance with requirements, if it is found that improper places, this ease of repair. Crusher should be checked prior to the commencement of the main connecting the retention situation. Prior to the commencement of transmission of the moving hand climbing, at least to air eccentric axis rotation 2-3 laps. Jin-ying that a flexible phenomenon, before driving. Activated prior crusher start pumps, lubrication until the point by lubricants, oil back to see me, before launching crusher.
Test idling continuous operation shall not be less than two hours. Crusher idling test must meet the following requirements. A broken cone around himself to the center of rotation for no more than 15 to / min. B bevel gear may be cyclical voice. C lubricating device should meet the following requirements. A) tubing to the pressure should be 0.8-1.5 kgf/cm2 range. B) to the oil temperature not exceeding 50 ℃. C) test at the crusher after all demolition should not be part of a paste friction burns and wear copper phenomenon.
If the taper to a few broken soon may have an undesirable phenomenon, it should be immediately stopped and inspected dressing, and to check the oil and then re-test.
If the cyclical bevel gear noise, to check the accuracy of gear installation, and inspection gear space.
Feed the installation of the Department of Cone Crusher:
Improper installation of the crusher will have the following effects. A crusher to reduce output. B uneven discharge particle size, bulk and more. Wear Parts C or uneven wear accelerated wear.
Distribution of the feed from the mouth of a high degree of H-crusher on the normal work is important, too high when H ore is not easy to direct the allocation of disk space to the crusher, therefore, must be in accordance with the regulations of the high degree to install it.
Radial plate is meant to protect the feed box is not damaged and ores difficult in the feed box to plug in the installation need to maintain the shape and curved steel plate curved mouth feed from the edge of the size, so as to avoid accumulation Ore.
Cone Crusher Installation Notice:
1, The right choice for the broken material crushing chamber;
2, The ratio of feed particle size appropriate; feed evenly distributed in 360-degree range of the crushing chamber;
3, The automatic control device;
4, Smooth crusher nesting area;
5, The specifications of the conveyor belt with the maximum capacity of the crusher;
6, The appropriate choice of pre-screening and closed-circuit screening sieve specifications.
Liming Cone Crusher Installation:
Liming Heavy Industry is a large crusher manufacturer, located in China, Zhengzhou, Henan Province, is located in the Central Plains, the strength. Production of all types and models of cone crusher, cone crusher installation and maintenance update is for customers to produce technical services. Welcomed the call letters to consult for more information and customized services.
