Hammer Crusher Animation
Hammer Crusher:
Hammer crusher is a common crushing machine, can material crushing period of less than 25 or 25 mm maximum particle size of 600-1800 mm broken.
Broken by the hammer crusher (hammer broken) high-speed rotating hammer and material collision surface materials, it has a simple structure, large crushing ratio, high production efficiency, can be used for dry, wet two forms of fragmentation. The hammer crusher for crushing all kinds of hard and abrasive weak material. The compressive strength of its material does not exceed 100MPa, the moisture content of less than 15%. The materials can be broken coal, salt, chalk, plaster, brick, limestone and so on. Also for the broken fiber structure, elastic and resilient pieces of wood, paper, or broken asbestos cement waste to recycling asbestos fibers. In addition, the hammer crusher not only can be used for crushing production line, sand making production line, but also in the mineral processing production line instead of a cone crusher.

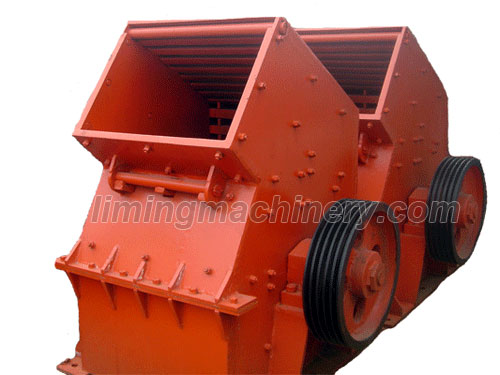

hammer crusher animation
Hammer Crusher Usage:
The hammer crusher is less investment and quick choice for small sand and gravel production line equipment, and transform the material grate forms, and can do selective material. Hammer crusher series has a small size, light weight, simple structure, easy operation and maintenance, large crushing ratio, over crushed small, uniform particle size, high capacity characteristics. For crushing brittle, hard in the compressive strength of 150 MPa, a variety of materials. Therefore, the hammer crusher (hammer broken) is widely used in mining, cement, coal, metallurgy, building materials, roads, fuel and other industries on the crushing medium hardness and brittleness of materials. The device can adjust the grate of the gap material change in size, to meet the different needs of different users according to user requirements.
Hammer Crusher Structure:
The main working parts of the hammer crusher (hammer broken) of the rotor with a hammer (also known as hammer). Rotor from the spindle, disk, pin and hammer.
Hammer Crusher Animation
The hammer crusher working principle is: the hammer crusher (hammer broken) vibrating motor to drive the rotor in the crushing cavity high-speed rotation. Material from the upper to the mouth to feed into the machine, high-speed movement of the hammer blow, impact, shearing, abrasive and grinding. The lower part of the rotor, has a sieve, crush the stone size smaller than the mesh size in the material is discharged through the sieve is greater than the sieve size of coarse grade retention continue to be a hammer blow and grinding, and finally in the sieve through the sieve board is discharged outside the machine. The main working parts of the hammer crusher rotor with a hammer (also known as hammer). Rotor from the spindle, disk, pin and hammer. The motor drives the rotor in the crushing cavity high-speed rotation. Material from the upper to the mouth to feed into the machine, high-speed movement of the hammer blow, impact, shearing, abrasive and grinding. The lower part of the rotor, has a sieve, crush the stone size smaller than the mesh size in the material is discharged through the sieve is greater than the sieve size of coarse grade retention continue to be a hammer blow and grinding, and finally in the sieve through the sieve board discharge.
