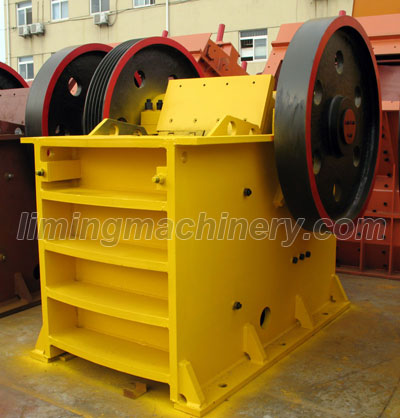

Jaw Crusher Overview:
Jaw crusher is a widely used rock crusher. Jaw crusher is generally used as a primary crusher in a crushing circuit. Product is fed into the top of the jaw crusher by an vibrating grizzly feeder. The eccentric rotating drive shaft causes the movable jaw to oscillate crushing the aggregate against a fixed jaw. Jaw crushers are run on belt drives driven by an electric motor or diesel engine. Jaw crushers are used extensively throughout the aggregate and mineral processing industry.
Jaw Crusher Details List:
Jaw crusher Processing stage: Primary crushing
Jaw crusher Crushing ratio: 4-6
Jaw crusher Capacity: max up to 1000TPH
Jaw crusher Crushing materials: Jaw crusher can crush granite, black trap, basalt, river gravel, bauxite, marble, slag, hard rock, limestone, coal, iron ore, magazine ore and so on. (These crushed materials' pressure resistance strength is under 200Mpa.)
Jaw crusher Application areas: Jaw crusher can be used in mining, metallurgical industry, construction, road and railway building, conversancy, chemistry, etc.
Jaw crusher Motor:Jaw crusher uses motor as its power, through the motor's wheels; the eccentric shaft is driven by the triangle belt and slot wheel to make the movable jaw plate move by a regulated track. Therefore, the materials in the crushing cavity composed of fixed jaw plate, movable jaw plate and side-lee board can be crushed and discharged through the discharging opening.
Jaw crusher Main Parts: jaw guard, main bearings, eccentric shaft, flywheel wheel (lain/grooved), set adjustment, tension rod, toggle plate, jaw stock, movable jaw plate, fixed jaw plate, frame, cheek plate (down), cheek plate (up).
European jaw crusher:JC series jaw crusher also named European jaw crusher is driven by motor. Through the motor's wheels, the triangle belt and slot wheel drive the eccentric shaft to make the movable jaw plate move by a regulated track. Then, the materials in the crushing cavity composed of fixed jaw plate, movable jaw plate and side-lee board can be crushed and discharged through the discharging opening.
