Mill Trapezium Machine
Mill Trapezium Introduction:
Super Pressure Trapezium Mill can improve the grinding efficiency of the trapezoid grinding roller and grinding ring. The aircraft will be grinding roller and grinding ring are designed ladder, reduce the rate of decline into the grinding roller and grinding ring material, thereby prolonging the time of the RCC material, improve the crushing effect; can play a balance booster the role of the pressure spring and can play smooth damping effect of the elastic links. The machine uses leverage, symmetrical roller assembly rod connected with the horizontal spring, when the bulk material top to put a roller assembly, the radial force can be passed to the plane of symmetry through spring rod the roller assembly to balance this condition, the device's overall power point and other products compared to about 40%; elastic coupling devices to reduce the vibration and noise, to avoid resonance.
Super pressure trapezium mill and vertical mill to have an unparalleled advantage compared to the application of a number of the latest national mill patents technology, innovative design, reasonable structure, small footprint, low power consumption, operational life long, and wearing parts, low cost, and cost-effective. The technical performance has reached international advanced level, compared with the traditional mill Raymond mill, ball mill, high pressure hanging roller mill, and other end of the patented product makes the powder leaves the shell gap adjustment is convenient, fast and greatly improve the accuracy of the finished product; features can improve the accuracy of the powder and products of high density powder separator impeller. The practice shows that the speed unchanged, increasing the density of the leaves can increase the fineness of the finished product, in other words, the product fineness not need to change the case of low speed, high density impeller than the low-density impeller, reducing airflow resistance, same power under the finished production increased more than 50%.
mill trapezium
Structure Consists:

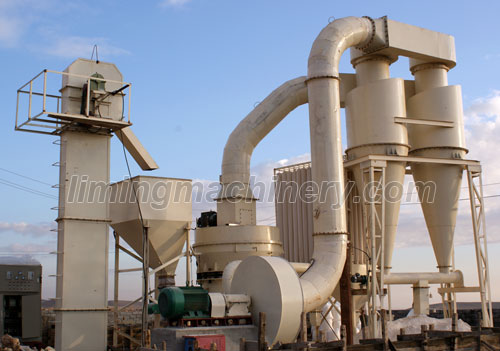

Super pressure trapezium mill equipment consists of: Super Pressure Trapezium Mill equipment package from the host, mill trapezium, reducer, separator, blower, jaw crusher, bucket hoist, electromagnetic vibrating feeder, storage silos bag dust collector, piping device, cyclone powder collector, electric control cabinet, motor and other components.
Work Principle:
Host reducer drive to the central axis of rotation, the upper end of the shaft connecting Plum racks, shelves equipped with a roller device and the formation of the swing fulcrum. The roller device is not only around the central axis of rotation around the grinding ring revolution, roll grinding friction and rotation. Plum aircraft equipped with a blade system, its location in the bottom of the roller blade and roller materials toss feed mill roll grinding ring with the transfer process between the formation of the litter layer, the material layer by the rotating grinding roller The materials crushed to produce the outward centrifugal force (ie, extrusion force), which reached milling purposes.
Mill Trapezium Maintenance:
1, Control cabinet of the operation and maintenance should be the person responsible.
2, Regular inspection cabinets cabinet, instrument display is clear and bright, flexible movement of the operating handle, contactors, main electrical electric shock without dust.
3, Frequently check components and the connection is loose, damaged.
4, Every six months telemetry insulation resistance, identify problems in time.
