Raymond Pulverizers Machine
Raymond Pulverizers:
After years of practice and improvement, the structure of raymond pulverizers is perfect every day. Raymond Pulverizers is widely used in the field of metallurgy, building materials, stone industry and mining, processing, powder, low energy consumption, less investment, environment friendly, small footprint, more efficient than traditional mill. Raymond Pulverizers series for grinding Mohs hardness below 7, humidity less than 6%, gypsum, calcite, talc, limestone, marble, potash feldspar, barite, dolomite, non-flammable, non-volatile burst, granite, kaolin, bentonite, bauxite, iron. Changes in the final product, from 613 microns to 44 microns. Function through the separator and fan, can meet different customer needs.

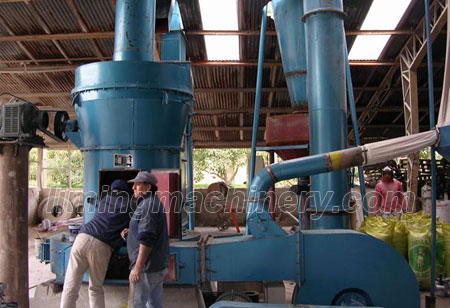

raymond pulverizers machine
Application Areas:
Raymond Pulverizers is widely used in barite, calcite, potash feldspar, talc, marble, limestone, dolomite, fluorite, lime, activated clay, activated carbon, bentonite, kaolin, cement, phosphate rock, gypsum, glass , insulation materials, such as Mohs hardness of not more than 7 and humidity less than 6% of the non-explosive minerals, chemicals, construction and other industries more than 300 kinds of material for high fine powder processing.
Work Process:
R-type milling machine the whole structure by the host, analysis, piping device, blower, crusher, according to user needs can be equipped with hoist, electromagnetic vibrating feeder, electric control motor and other components.
Materials are crushed to the required particle size by the hoist materials sent to the storage hopper, vibrating feeder will feed evenly into the host continuous grinding room, the centrifugal force due to the rotation, roller swing outward, pressed between the grinding ring, the shovel blade materials sent to the grinding roller and grinding ring, crushed grinding roller rolling to achieve the purpose.
Materials after grinding the powder with the blower circulating air into the analyzer for sorting, fine through coarse material falls back to re-grinding, qualified powder with the air flow into the finished product cyclone powder collector, through a powder discharge pipe. is finished.
Heat in the grinding room there is a certain amount of moisture due to the material to be ground, grinding, and the evaporation of water vapor, as well as the whole pipe joints are not tight, outside the gas is inhaled, so that the loop pressure increased to ensure that the mill work in the vacuum state I wind pipe, the increase in gas flow discharged into the dust collector into the atmosphere is purified.
Structure Characteristics:
1, three-dimensional structure, small footprint, complete sets of strong, refined powder expected from the block is independent of its own production system. 2, refined powder fineness of uniform pass the screening rate of 99%, which is difficult to have other milling equipment. Host gear sealed gearbox and pulleys, transmission smooth, reliable operation. 4, an important component of high quality steel, wear parts are made of wear-resistant materials, the whole high wear resistance and reliable operation. 5, the electrical system of centralized control, milling workshop basic can realize unmanned operation, and maintenance.
Installation Notes:
Raymond Pulverizers is installed run site have not been installed, they should take good care of the exposed surfaces are coated with rust-proof grease, and avoid the sun and rain to prevent body rust water, we must establish a maintenance system. Plant and should be based on basic size of the chart should be of sufficient height and the installation location, installed according to Raymond Raymond should be based on high-standard cement and buried reinforced in order to pour the basis, and I buried threading pipe or cable trench. Pouring the cement foundation, there must be the maintenance period of 15 days. With 2 to 3 tons lifting tools for Raymond installation and maintenance. Raymond more than six months from the factory to use the time to host the central axis of the system, transmission device, roller device, analysis of oil tanks, etc. should be cleaned, check the response to the various components add enough lubricant after cleaning checked.
Care and Maintenance:
1, Mill in the use of the process, should be staff responsible for the custody of the operator must have a certain technical level. Milling machine before installing the operating personnel must carry out the necessary technical training to understand the principle of the mill performance, familiar with the operating procedures.
2, In order to make the mill should be developed equipment "equipment maintenance safe operation of the system can ensure the mill long-term safe operation, have the necessary tools for maintenance and grease and the appropriate accessories.
3, Mill use for some time, should be carried out maintenance, roller mill ring blade and other wearing parts, maintenance replacement treatment, roller device before and after use of the connecting bolt nuts should be carefully examined to see if there are loose grease is to add a little.
4, Roller device to use time more than 500 hours to replace the roller, roller kit, rolling bearings must be cleaned and damaged parts should be replaced refueling tool can be used manually pumps and grease gun.
