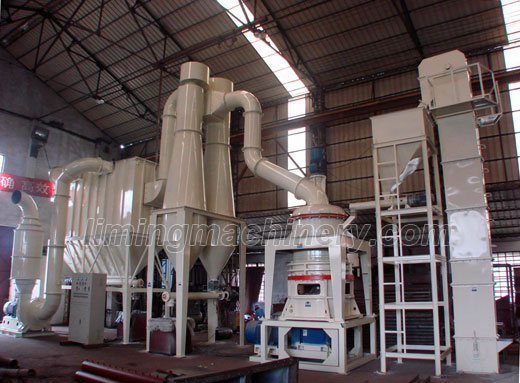

Three Ring Micro Powder Mill Machine
Three Ring Micro Powder Mill Machine:
Referred to as the three ring micro powder mill machine, chief engineer of the company based on many years experience in the high fine powder generation and processing, devoted themselves to developing a new type of milling equipment, creating a international industrial milling efficient, low consumption of a new era.
HGM ring medium speed micro powder mill grinding cavity bearings, screws, safe operation of equipment; using the grading grinding of materials, product fineness, one-time up to d97 ≤ 5μm. Ring medium speed micro powder mill efficiency and low consumption. Than the production of jet mill, mixing mill fineness of materials, power, and finished the same circumstances, 40%; long service life. Materials and finished product fineness of the same circumstances, impact crusher and turbine crusher wear parts, long life, and generally up to 1 year or more. Grinding cavity-free bearings, no screws. Does not exist bearing its seal and wearing screw is easy to loose to destroy the machines and other issues. Product fineness can be the first to reach d97 ≤ 5μm.
Three ring micro powder mill machine - calcite grinding, milling equipment, grinding machinery, grinding equipment for a processing of ultra-fine powders. With the advances in technology, market development, the increasing demand for ultra-fine powder products, and demand for the growing R & D center to the introduction of the original technology from Germany, first using the dry method powder. Ring medium speed micro grinding in processing calcite, mica, fluorite, and more than 200 species of 6 Mohs hardness of brittle materials, once into a powder of 3250 mesh, so that users have a broader market prospects in the application.
three ring micro powder mill machine
Mill Machine Features:
The machine can work continuously, using dust collector, no rolling bearing and screw grinding cavity, high-pressure centrifugal induced wind device, completely different to the conventional milling machine works, low investment costs, The recovery period is short, long life, and can be more than one year, grinding cavity safe and reliable operation, the finished product fineness, environmental pollution, the efficient pulse type dust collector, dust pollution in the operation of the equipment package, configure silencer and silencer housing, reduce noise, in accordance with national environmental standards to organize production, played a role in environmental protection is the best equipment to crush the hard materials.
Application Areas:
Three ring micro powder mill machine, it is mainly applicable to non-explosive brittle materials processing Mohs hardness greater than 6, is mainly used to crush the barite, limestone, ceramic, slag, and humidity below 6% non-flammable and explosive mines, metallurgy, chemicals, building materials industry more than 280 kinds of material for high fine powder generation and processing, refined stone size in the range of 80-425 mesh adjustment (fine 1000 mesh). Such as calcite, chalk, limestone, dolomite, kaolin, bentonite, talc, mica, magnesite, illite, pyrophyllite, vermiculite, sepiolite, attapulgite, rectorite, diatomite, barite, gypsum, alunite, graphite, fluorite, phosphate rock, potassium ore pumice, etc. more than 200 kinds of materials.
How It Works:
Three ring micro powder mill machine by adding a special device to the host motor through reducer drive shaft and the layers turntable rotating turntable driven by Pin dozens ring roller rolling and rotating grinding ring raceway. The bulk material by the hammer crusher broken into small particles by a hoist into the storage hopper, electromagnetic vibrating feeder uniform materials sent to the middle of the last dial material scattered under the influence of centrifugal force to the circular periphery, and fall into the grinding ring raceway ring roll stamping, roll grinding, grinding and grinding, the material crushed by the first layer and then fall into the second tier and third tier, the pumping action of the high-pressure centrifugal fan external air suction machine and after the third layer of crushed after the meal with selected powder machine. The eddy current generated by the selected powder machine rotation of the turbine so that the coarse material down regrinding, the powder into the cyclone powder collector with air flow discharged by the lower part of the discharge valve is finished, with a small amount of fine dust air discharged through blower and muffler after pulse filter purification.
Liming Three Ring Micro Powder Mill Machine:
Liming Heavy Industry's mill machine is an excellent mining machine. Liming Heavy Industry is committed to producing the best mining equipment in China, capable of producing various types of three ring a micro powder mill machine. If you need a milling machine or similar products, please contact us, we will provide quality service so that you get a satisfactory harvest.
