TM Medium Trapezium Mill
TM Medium Trapezium Mill:
TM medium trapezium mill, which also TGM medium trapezium mill, industry-leading technology to create technology, innovation, quality, environmental protection in a Liming Heavy Industry R & D group on the basis of long-term mill R & D experience, painstaking research mill innovative technology in conjunction with foreign experts design of the latest mill, with its output, less investment. Its overall drive bevel gear, the internal oil lubrication system and curved duct latest patented technologies. The international advanced technical level, the latest grinding equipment has a number of independent patent property rights. Their products well known at home and abroad, are exported to Russia, Kazakhstan, Azerbaijan, Turkey, Kuwait, South Africa, Egypt, Vietnam, Malaysia, India, Australia, Korea, Canada and the European Union and other countries and regions. Been widely used in metallurgy, building materials, chemicals, mining minerals such as grinding materials processing, are widely used in metallurgy, building materials, chemicals, mining minerals such as grinding materials processing.
TM Series European ladder mill is widely used in metallurgy, building materials, chemicals, mining minerals such as grinding materials processing are widely used in metallurgy, building materials, chemicals, mining minerals such as grinding materials processing. Can also be processed grinding quartz, feldspar, calcite, talcum, barite, fluorite, rare earth, marble, ceramic, bauxite, manganese ore, iron ore, copper ore, phosphate rock, red iron oxide, zircon sand , slag, slag, cement clinker, activated carbon, dolomite, granite, garnet stone material material, three crushing equipment, jaw crusher, impact crusher broken products, more detailed grinding, so that to meet customer requirements.

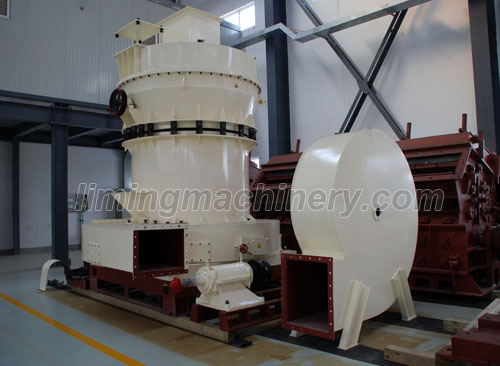

TM medium trapezium mill
Application Areas:
Super Pressure Trapezium Mill has been widely used in electric power, mining, metallurgy, chemicals, iron and steel, building materials, coal and other industries, had a huge economic and social benefits. Is mainly used for mining, building materials, chemical industry, metallurgy, thermal power, coal grinding Mohs hardness below 9.3 and humidity 6% non-explosive mineral materials, product fineness of 30 - 400 mesh of arbitrary regulation, such as cement (raw clinker), quartz, feldspar, calcite, dolomite, graphite, fluorite, wollastonite, rock phosphate, calcium magnesium phosphate, coal, coal gangue, slag, zircon sand , more than a thousand kinds of talc, granite, orthoclase, marble, barite, ceramics, glass and other materials grinding processing. Super Pressure Trapezium Mill in the design take full account of the needs of the desulfurization milling, and desulfurization equipment, perfect match, thereby enhancing the desulfurization efficiency, and thus become the device of choice at home and abroad desulfurization milling.
How it Works:
Super pressure trapezium mill equipment consists of: Super Pressure Trapezium Mill equipment package from the host, reducer, separator, blower, jaw crusher, bucket hoist, electromagnetic vibrating feeder, storage silos bag dust collector, piping device, cyclone powder collector, electric control cabinet, motor and other components.
Host reducer drive to the central axis of rotation, the upper end of the shaft connecting Plum racks, shelves equipped with a roller device and the formation of the swing fulcrum. The roller device is not only around the central axis of rotation around the grinding ring revolution, roll grinding friction and rotation. Plum aircraft equipped with a blade system, its location in the bottom of the grinding roller blade and roller materials toss feed mill roll grinding ring with the transfer process between the formation of the litter layer, the material layer by the rotating grinding roller The materials crushed to produce the outward centrifugal force (ie, extrusion force), which reached milling purposes.
Trapezium Mill Features:
1, the bevel gear drive, the structure is more compact, more convenient installation and adjustment, the efficiency is greatly increased.
2, the internal oil lubrication system, no additional pump or lubrication station, you can achieve the lubrication of spindle bearings and bevel gear shaft bearings.
3, the duct surface duct, the curved duct, the tangential inlets smooth, resistance, internal export orientation conducive to the dispersion of the material, not easy sealing.
4, the surface can change the blade blade, blade for high wear resistance alloy material, long life, simply replace the blade part replacement, improve material utilization. Another conventional planar-type blade, the material accumulated in the scoop On one level, so that the ring roller mill Central badly worn, the surface-type blade material-oriented facade, so that the roller mill on the ring, middle and lower can be grinding, to make it uniform wear and tear, but also increases the effective work area, thus increasing the yield.
5, the inner tube and the mixture powder flow between the isolated structure, can effectively improve the efficiency of the separator and the accuracy of the powder.
6, internal door surface and the inner surface of the inlet air volute on the same surface without resistance into the wind volute (small observation door without vortex) to avoid eddy current effects.
