Working Principle of Cone Crusher
working principle of cone crusher
Cone Crusher:
Cone crusher is a new type crusher machine. It is widely used in metallurgical, construction, road building, chemical, and the phosphate industry. The cone crusher is suitable for hard and medium hard rock and ore crushing chamber ore such as iron ore, copper ore, limestone, quartz, granite, coarse sandstone and other decision. The standard PYZ (secondary crush); intermediate type PYD (tertiary crush); short head type is for primary and secondary crush.

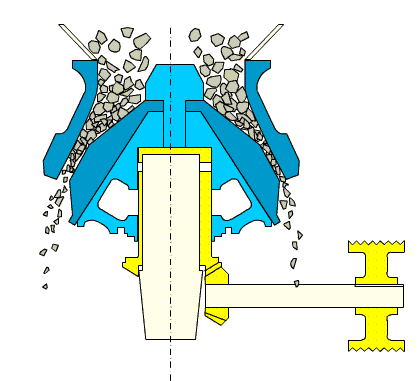

Working Principle of Cone Crusher:
Cone crusher frame, transmission device, hollow eccentric shaft, bowl-shaped bearing, crushing cone, springs and hydraulic adjustment of the discharge opening station.
Cone crusher machine crushed between the movable cone and fixed cone surface of the material. Therefore, it is more advanced, more efficient than jaw crusher. Moving cone spherical bearing support and a fixed set in the eccentric sleeve hanging erect shaft, and set the parking and to promote the bearing sleeve. The movable cone and erect shaft are driven up by the eccentric sleeve. By horizontal shaft and fimbriated gear-driven eccentric shaft sleeve, V-belt, conveyor belt wheel is driven by electric motors. The shaft lower part is installed in the eccentric sleeve. When the eccentric sleeve rotation, there is a conical shaft surface lining. When the move near the fixed cone cone rock ground into pieces, scuppers discharge when the cone leaves, abrasive materials. The fixed cone can be l or decreased by adjusting the settings, adjust the width of the scuppers, so to determine the size of the output.
During operation, the motor-driven eccentric shaft shell to open around ahorizontal axle and a pair of bevel gears. Broken cone swing, the strength of the eccentric shaft shell so that the surface of the crushing wall is close to the roll mortar wall from time to time bridge. In this way, ore and rock pressure crooked and crushed.
