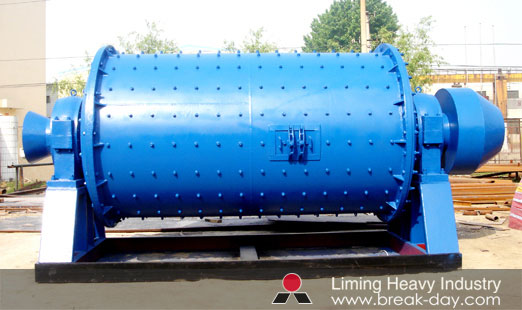

Continuous Grinding Ball Mill Description:
Continuous grinding ball mill is an efficient tool for grinding many materials into fine powder. The continuous grinding ball mill is used to grind many kinds of mine and other materials, or to select the mine.2 It is widely used in building material, stone industry, etc. There are two ways of grinding: the dry way and the wet way. It can be divided into tabular type and flowing type according to different expelling mine.
To use the continuous grinding ball mill, the material to be ground is loaded into the Neoprene barrel that contains grinding media. As the barrel rotates, the material is crushed between the individual pieces of grinding media that mix and crush the product into fine powder over a period of several hours.
Quite simply, the longer the continuous grinding ball mill runs, the finer the powder will be. Ultimate particle size depends entirely on how hard the material you're grinding is, and the time how long the continuous grinding ball mill runs. Our continuous grinding ball mills have been used to grind glass, powder stone products, creat custom varnishes,make ceramic glaze, powder various chemicals, and make Black Powder.
Continuous Grinding Ball Mill Structure:
Continuous grinding ball mill to feeding part, discharging part, turning part, transmission part (reducer, small transmission gear, motor, electric control), the main part. Hollow axis adopts the cast steel, lined with removable, rotary gear hobbing by casting process, the body inlaid cylinder liner wear, has good abrasion resistance. The machine running smoothly, work reliably.
Continuous grinding ball mill host, including cylinder, drum is equipped with wear-resistant materials made lining, carrying cylinder and maintain its rotating bearing, but also drive parts, such as motors, and transmission gears, pulleys, V-belt.
About called parts of the blade, generally not a major component, the feed inlet in the feed end of the member within the inner helix can be called the inner helical blades, the inner helix can also be called the inner helical vane in the discharge end of the member within the spout.
Also in the discharge end of the auxiliary equipment, screw conveyor, the device will be called the spiral blade parts, but strictly speaking, it has not a continuous grinding ball mill parts.
Dry continuous grinding ball mill and wet lattice-type continuous grinding ball mill can be selected according to the material and the ways of discharge. Energy-saving continuous grinding ball mill, double row self-aligning spherical roller bearings, the running resistance of small, energy-saving effect is remarkable. The cylindrical part, the discharge end of the original cylinder increase over a conical cylinder, both to increase the effective volume of the mill, and also allows more rational allocation barrel medium. The products are widely used in non-ferrous metals, ferrous metals, non-metallic mineral processing field and stone industry, building materials industry for material grinding.
Continuous Grinding Ball Mill Working Principle:
Continuous grinding ball mill works and material from the feed device into the compound empty shaft spiral evenly into the mill first warehouse, the warehouse there are ladder liner or corrugated liner, built with different specifications steel ball, rotating cylinder produces centrifugal forceafter dropping the ball a certain height, thump and grind the material. The material in the first warehouse, coarse grinding by monolayer partition panel into the second position, the warehouse lined with flat lining with steel balls, the material further grinding. Powder discharged through the discharge grate plate to complete the grinding operation.
Liming Continuous Grinding Ball Mill:
Liming Heavy Industry is committed to producing the best mechanical crushing equipment, capable of producing various types of crusher and mill, and reached the leading level in the world. We are a trustworthy continuous grinding ball mill manufacturer capable of producing all types of continuous grinding ball mill, good quality and reasonable prices. Liming Heavy Industry production of continuous grinding ball mill is a set of similar products at home and abroad, the successful experience, devote themselves to come up with an energy-efficient crushing equipment. Medium-sized continuous grinding ball mill is one of the leading products of the company, especially in the design and production of large crusher mill at the absolute leading level at home and abroad.
If you need any help of continuous grinding ball mill, please contact us directly. We aim to provide you with the best continuous grinding ball mill and the most economical reasonable solution, our experts will provide technical assistance at any time for you. Looking forwards to establish a long-term business relationship with you.
