Sand Washing Process
The sand washing machine driven by the cleaning tank of gravel tumbling through the impeller rotation, friction, remove the cover of sand and gravel surface impurities, while destruction of the vapor layer coated sand, washing powder in the separation of sand and gravel in the soil, and then get a clean gravel.

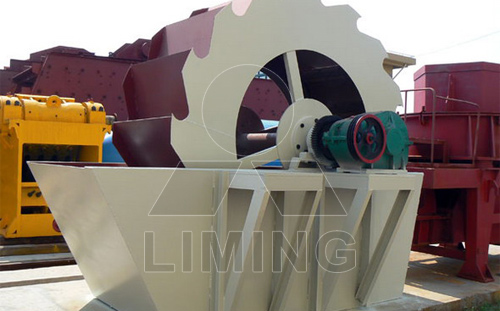

sand washing process
Sand Washing Machine:
Sand washing machine is a kind of necessary and water-washing-style equipment in sand production system. Sand washing machine can wash away the small amount of mixed powder sand and impurities from the sand, so that can improve the quality of sand. It has features of high clearance ratio, seasonable structure, large productivity, low power consumption, less loss of sand in washing process. This machine is mainly used for washing, grading and dehydration quartz sand in construction sites, gravel plants, concrete hydropower dam, glass plant.
Sand Washing Process:
Sand washing machine work, the motor through the belt, reducer, gear reducer driven impeller slow rotation, sand and gravel into the wash tank to the trough, impeller driven rolling and grinding each other, remove the cover the gravel surface impurities, while undermining the vapor layer of the coated sand, in order to facilitate dehydration. Add water to form a strong water flow, timely impurities and a small proportion of the foreign body away, and bowl discharge from the overflow exports, complete the cleaning effect. Clean sand from the leaves away, the final sand and gravel from the rotation of the impeller into the trough to complete the cleaning effect of the gravel.
Note in the Process:
1, If the sand washing machine to wash the sand amount to reduce the leakage of sand may be damage to the sand network or sand net fixed bolts off, you need to check the repair or replacement of sand network or fastening bolts.
2, If the gear is damaged, it is not timely maintenance gear, sand washing machine shaft and reducer low speed shaft did not reach the required degree of parallelism, sand washing machine according to the specified time at work refueling; adjust it to meet the requirements.
3, If it is found rack vibration may be connected frame bolts loose or the bearing bolt loose, need to tighten the bolts or check and tighten the bolts.
4, Bearing wearing, oil or seal damage, long-term lack of maintenance and cleaning, refueling or replace the seals required to be cleaned regularly.
5, Some noise, there may be lack of gear lubrication or gear spacing changes, you need to add a little grease or adjust the speed reducer bolt and tighten.
